Mercusys AC10 AC1200 Wireless Dual Band Router, 867 Mbps @ 5GHz 300 Mbps @ 2.5 GHz, WPS Button, 1xWAN 1xLAN 4 Fixed Omni-Directional Antenna (LS)

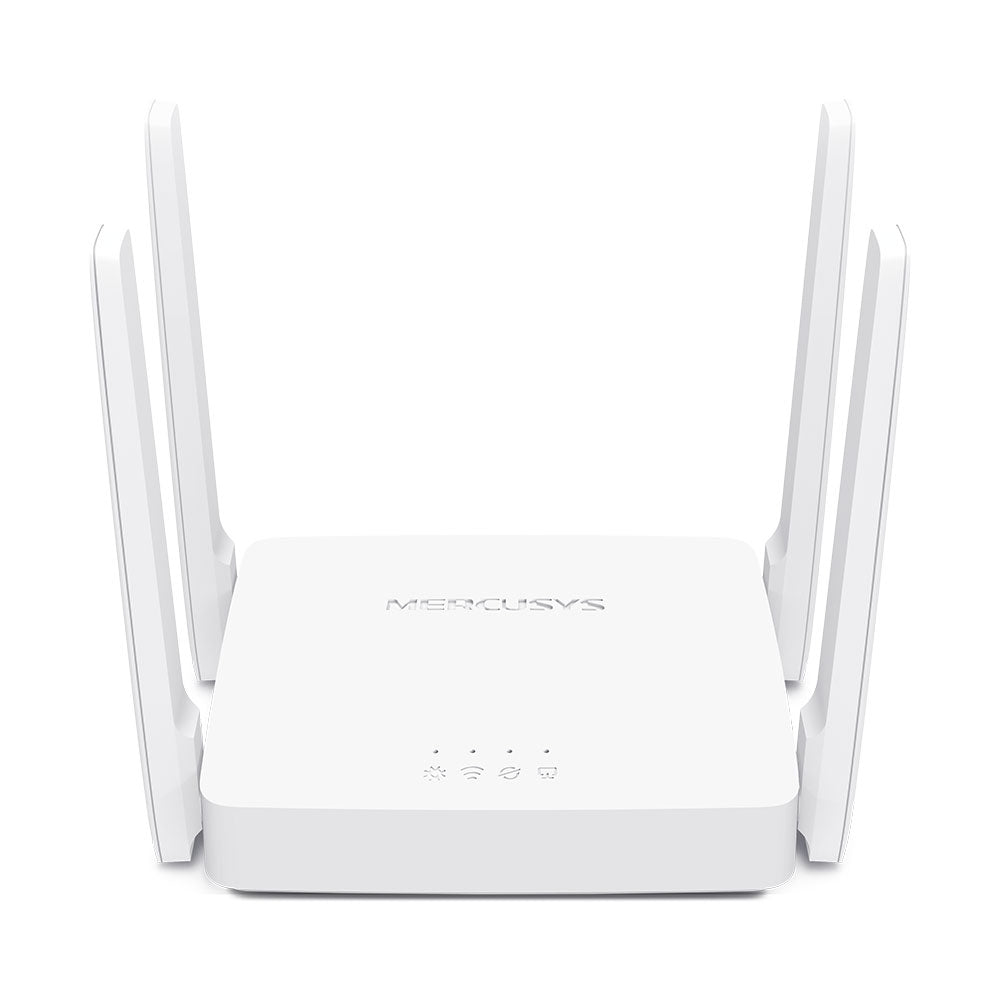

Mercusys AC10 AC1200 Wireless Dual Band Router

• High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
• 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home
• Easy Installation – Set up in minutes guided by an intuitive web UI
• Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use
• IPTV and IPv6 Supported

Ethernet Ports
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports

Button
Reset/WPS Button

External Power Supply
9V/0.85A

Dimensions (W X D X H)
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)

Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas

Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 GHz, 5 GHz

Signal Rate
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm

Wireless Functions
Enable/Disable Wireless Radio, WMM

Wireless Security
WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
