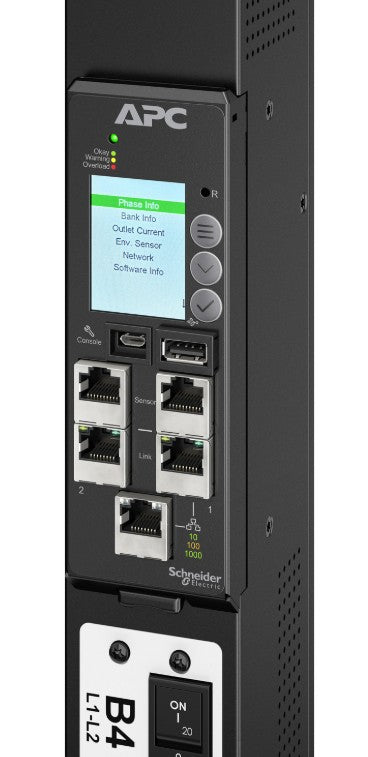

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet

APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets. Colour Black Product or component type PDU PDU type Metered Cord length 3 m Complementary Input Voltage 415 V 3 phases 400 V 3 phases Height 1780 mm Width 56 mm Output Voltage 240 V Depth 75 mm Net weight 8.4 kg Mounting location Side Mounting preference No preference Input Plug Type IEC 60309 30 A 3P + N + PE Mounting mode Rack-mounted Rack units 0U Mounting position Vertical Communication port protocol 1000BASE-T 10/100BASE-T [In] rated current 24 A permissible voltage 200…240 V 346…415 V Input current limits 30 A Load capacity 17300 VA Network frequency 50/60 Hz Outlet type and quantity 24 C13/C15/C19/C21 24C13/C15 Environment Standards UL 62368-1 CSA C22.2 No 62368-1 FCC part 15 Subpart B CE EN 62368-1 IP degree of protection IP44 Ambient air temperature for operation -5…60 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0…15240 m Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 198 cm Package 1 Width 13.2 cm Package 1 Length 26.2 cm Package 1 Weight 11.4 kg Contractual warranty Warranty (in months) 36
