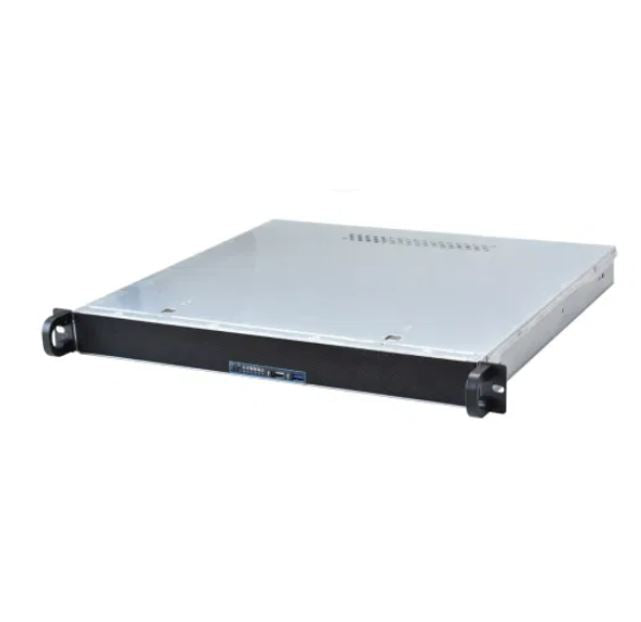

TGC Rack Mountable Server Chassis 1U 400mm, 2x 3.5' Fixed Bays, 4x 2.5' Fixed Bays, up to CEB Motherboard, FH PCIe Riser Card Required, 1U PSU Require
- Product SKU: CAT-H1-400
- Category:Cases Accessories,Consumer,Peripherals & Accessories
- Warranty : 12 Months
- Width : 116 mm
- Length : 548 mm
- Height : 560 mm
1U rackmount chassis, support for motherboard size: SSI EEB (E-ATX) 12″ x 13″
(2) 3.5″ drive bay, (4) 2.5″ drive bay
(1) full-height & full-lenght expansion slot(s) (Riser Card Required)
(3) 40x28mm fan(s) 3 Pin
(2) USB 3.0 in front of chassis
Drive Bay: 2x 3. 5 " Fixed HDD drive bays ，4x 2.5”SSD bays
Cooling Fan: 3 x 40mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector: 2x USB3.0 front accessible USB port
Motherboard Compatibility: Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply: Standard 1U power supply, FLEX ATX power supply
Dimensions ( W x D x H ):(430mm x 400mm x 44.5mm)
Packing: single box : Weight: Weight: 5.0 kg/11.0 lb (NET) 5.5 kg/12.1 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
Features:
2x 3. 5 " Fixed HDD drive bays ,4x 2.5”SSD bays
Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
Screwless top cover
3x40mm ball bearing fans wall for better ventilation
Front accessible USB port
Smooth border prevent lacerating your hand
1U rackmount chassis, support for motherboard size: SSI EEB (E-ATX) 12″ x 13″
(2) 3.5″ drive bay, (4) 2.5″ drive bay
(1) full-height & full-lenght expansion slot(s) (Riser Card Required)
(3) 40x28mm fan(s) 3 Pin
(2) USB 3.0 in front of chassis
Drive Bay: 2x 3. 5 " Fixed HDD drive bays ，4x 2.5”SSD bays
Cooling Fan: 3 x 40mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector: 2x USB3.0 front accessible USB port
Motherboard Compatibility: Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6")
Power Supply: Standard 1U power supply, FLEX ATX power supply
Dimensions ( W x D x H ):(430mm x 400mm x 44.5mm)
Packing: single box : Weight: Weight: 5.0 kg/11.0 lb (NET) 5.5 kg/12.1 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
Features:
2x 3. 5 " Fixed HDD drive bays ,4x 2.5”SSD bays
Support CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
Screwless top cover
3x40mm ball bearing fans wall for better ventilation
Front accessible USB port
Smooth border prevent lacerating your hand
