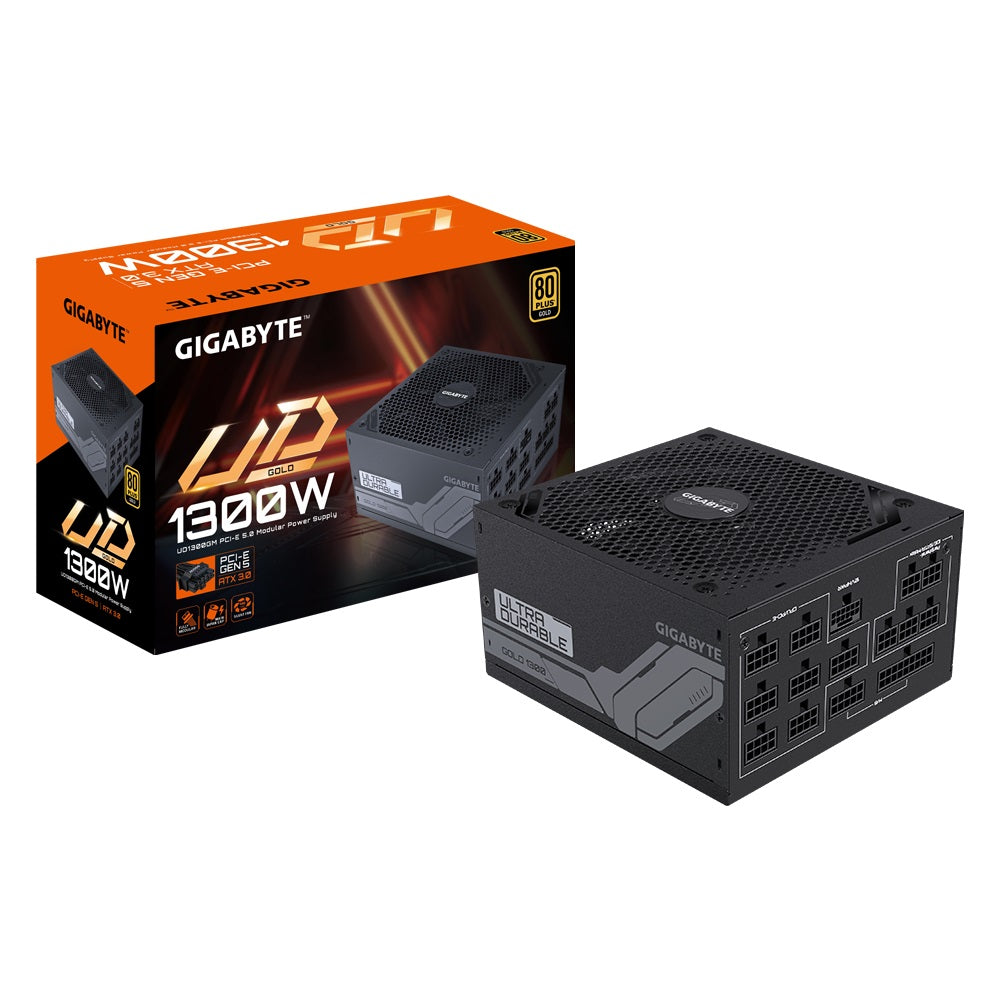

Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs
4%
Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs
Available:Out of Stock
- Product SKU: PSG-UD1300GMPG5
- Category:Peripherals & Accessories,Power Supplies
- Warranty : 120 Months
- Width : 200 mm
- Length : 200 mm
- Height : 100 mm
$423.00
$442.20
Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
Input Current 15-6.5A
SPECIFICATIONS:
Model GP-UD1300GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1300W
Dimension 150 x 160 x 86 mm
Fan Type 140mm double ball bearing fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
