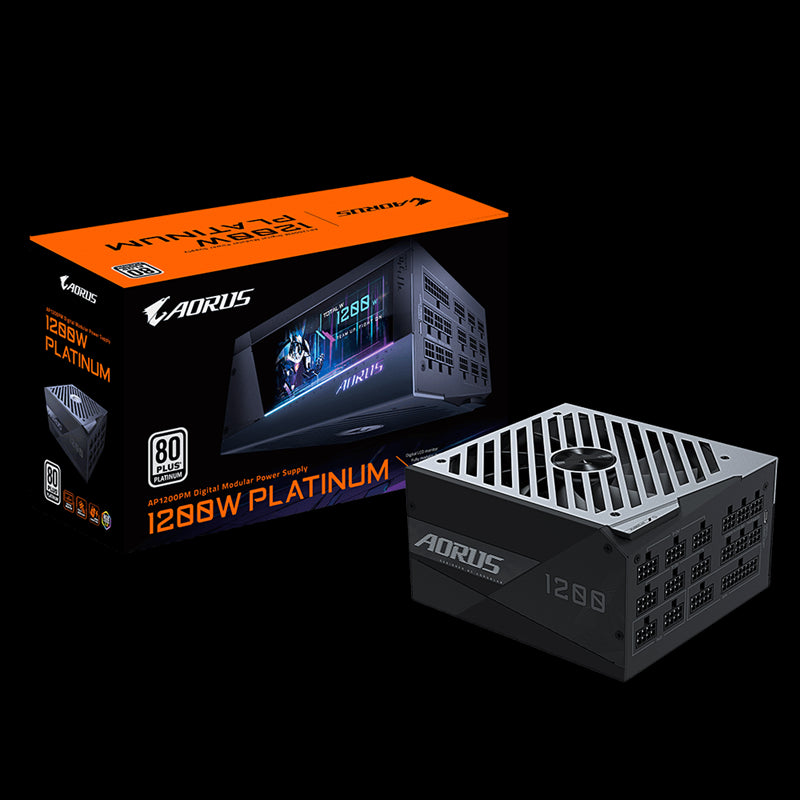

Gigabyte AORUS AP1200PM 1200W 80+ Platinum ATX Modular Power Supply, Digital LCD Monitor, Japanese Capacitors, RGB Fusion 2.0 (LS) --> PSG-UD1300GMPG

Gigabyte AORUS AP1200PM 1200W 80+ Platinum ATX Modular Power Supply, Digital LCD Monitor, Japanese Capacitors, RGB Fusion 2.0

KEY FEATURE
Digital LCD monitor
80 PLUS Platinum certified
Fully modular design
100% Japanese capacitors
Compact size design
140mm smart double ball bearing fan
Fan dust removal function
Single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
10 years warranty (Adjusted according to different regions)

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2

Model
GP-AP1200PM

Output Capacity
1200W

Input Frequency
60-50 Hz

Input Current
15-7.5A

Input Voltage
100-240 Vac (full range)

PFC
Active PFC (>0.9 typical)

Type
Intel Form Factor ATX 12V v2.31

Fan Type
140mm Double ball bearing Fan

Cable Type
Flat, All black

80 PLUS
Platinum

Efficiency
92% at typical load

MTBF
>100,000 hours

Protection
OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal
100-500ms

Hold Up Time
>16ms

Dimension
150 x 160 x 86mm
