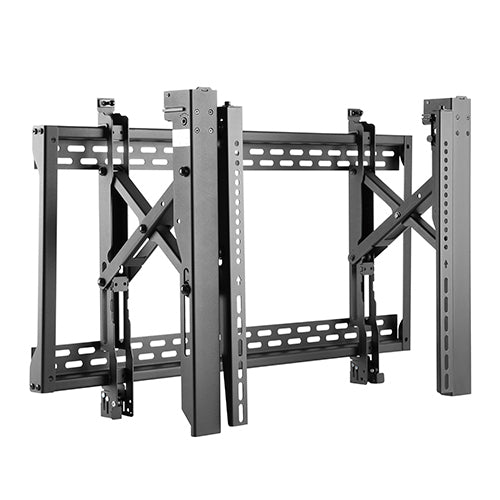

Brateck Pop-out Landscape Video Wall Mount Fit Screen Size 45'-80' Up to 70Kg(LS)
- Product SKU: MABT-LVW06-48T
- Category:Available,Monitor Arms (VESA),Peripherals & Accessories
- Warranty : 60 Months
- Width : 271 mm
- Length : 947 mm
- Height : 138 mm
- Order within
LVW06-48T provides a professional video wall solution while offering universal compatibility with load capacity of 70kg/154lbs and max. VESA 800x400 hole pattern. Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance. Quick-release latch keeps displays in place via activating lock & unlock mode. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock).
FEATURES
●Pop-Out Extension: provides quick access for installation and maintenance
●Precise Display Alignment: height/depth adjustment for seamless digital signage
●Quick-Release Latch: locks/unlocks the display in place
●Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
SPECIFICATIONS
Product Category: Video Wall Mount & Stand
Rank: Premium
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Color(Accessory): Fine Texture Black
Dimensions: 870x95~285x524mm (34.3"x3.7"~11.2"x20.6")
Fit Screen Size: 45"-80"
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x400
Weight Capacity(Per Screen): 70kg (154lbs)
Screen Qty: 1
Strength Tested: 4 Times Approved
Profile: 95~285mm (3.7"~11.2")
Fine Adjustment(Depth/Height): 20mm/25mm (0.79"/0.98")
Tilt Range: +4°~-2°
Screen Level: +3°~-3°
Installation: Solid Wall
Direction Indicator: Yes
Anti-theft: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
LVW06-48T provides a professional video wall solution while offering universal compatibility with load capacity of 70kg/154lbs and max. VESA 800x400 hole pattern. Multi-dimensional micro adjustment enables precision alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance. Quick-release latch keeps displays in place via activating lock & unlock mode. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock).
FEATURES
●Pop-Out Extension: provides quick access for installation and maintenance
●Precise Display Alignment: height/depth adjustment for seamless digital signage
●Quick-Release Latch: locks/unlocks the display in place
●Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
●Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
SPECIFICATIONS
Product Category: Video Wall Mount & Stand
Rank: Premium
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Color(Accessory): Fine Texture Black
Dimensions: 870x95~285x524mm (34.3"x3.7"~11.2"x20.6")
Fit Screen Size: 45"-80"
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x400
Weight Capacity(Per Screen): 70kg (154lbs)
Screen Qty: 1
Strength Tested: 4 Times Approved
Profile: 95~285mm (3.7"~11.2")
Fine Adjustment(Depth/Height): 20mm/25mm (0.79"/0.98")
Tilt Range: +4°~-2°
Screen Level: +3°~-3°
Installation: Solid Wall
Direction Indicator: Yes
Anti-theft: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
