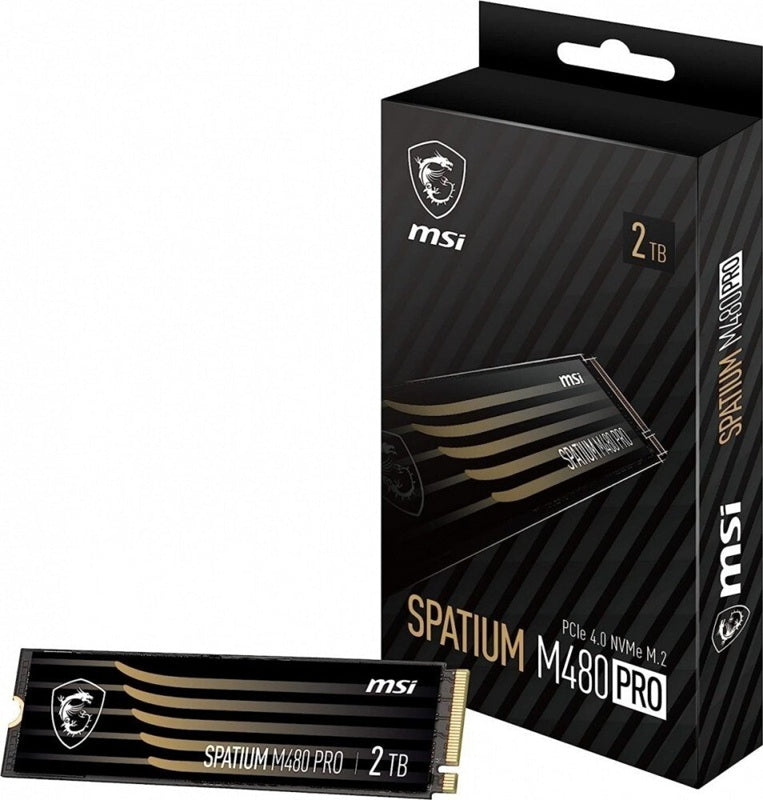

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty
MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty
Available:In Stock
- Product SKU: HBM-SPATIUMM480PRO-2TB
- Category:Available,Computer Components & Hardware,SSD
- Warranty : 60 Months
- Width : 80 mm
- Length : 152 mm
- Height : 16 mm
$253.00
$359.00

- Order within

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty
SPECIFICATION
Model Name
SPATIUM M480 PCIe 4.0 NVMe M.2
Capacity
2TB
Controller
PHISON E18
Flash Memory
3D NAND
Dram Cache
2GB DDR4
Form FActor
M.2 2280
Interface
PCIe Gen4x4, NVMe 1.4
Compatibility
PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s)
7400
Sequential Write up to (MB/s)
7000
Random Read 4KB up to (IOPS)
1,000,000
Random Write 4KB up to (IOPS)
1,000,000
Maximum Operating Power (W)
10.5
Idle Power PS3 (mW)
45
Low Power L1.2 (mW)
3
Operating Temperatures
0°C – 70°C
Storage Temperatures
-40°C – 85°C
Terabytes Written (TBW)
1400
Mean Time Between Failure (MTBF)
Up to 1,600,000 Hours
Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 2TB SSD, 2GB DDR4, Sequential Read up to 7400MB/s, Sequential Write up to 7000MB/s, 1400 TBW, 5 Year Warranty
SPECIFICATION
Model Name
SPATIUM M480 PCIe 4.0 NVMe M.2
Capacity
2TB
Controller
PHISON E18
Flash Memory
3D NAND
Dram Cache
2GB DDR4
Form FActor
M.2 2280
Interface
PCIe Gen4x4, NVMe 1.4
Compatibility
PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s)
7400
Sequential Write up to (MB/s)
7000
Random Read 4KB up to (IOPS)
1,000,000
Random Write 4KB up to (IOPS)
1,000,000
Maximum Operating Power (W)
10.5
Idle Power PS3 (mW)
45
Low Power L1.2 (mW)
3
Operating Temperatures
0°C – 70°C
Storage Temperatures
-40°C – 85°C
Terabytes Written (TBW)
1400
Mean Time Between Failure (MTBF)
Up to 1,600,000 Hours
Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)
